VELTRIX — Recurve Bow
Fall 2022 Term 14 Weeks Class Project
Student project has no affiliation with any brand
A bow will provide a FRIENDLY and EASIER
way for users to grasp the
ANCIENT & CHALLENGING activity
Student project has no affiliation with VanMoof
DESIGN PROCESS
USER SENARIOS
NAME: Sasa
AGE: 26
Occupation:
Boss of a archery venue
It is really hard to teach a new man to learn archery. They always need at least 3 hour practice to shoot on target.
At the same time, I have to look after them all the time. Otherwise they are really easy to hurt them.
NAME: Yifei
AGE: 14
Occupation:
Student
I really like the sport, everytime I shoot at the center of target, it makes me feel really good.
However, I have to spend 5 hours per week on practicing. The movement, position, and strength. Every part is a hard thing to do, and every time I start aim at target, I need to think about all steps.
IDEATION
MODELING & MOCK-UP
Camera
Use for see target on phone
Bluetooth
Connect to phone for check service condition
Power Control
Control the pulling strength
Sighting
Aiming by ray optics
Function
Powerful help for easier fire accurate
Aiming Sight & Camera
The sight theory come with gun sight which is better and easy to use.
The camera is going to prove the target situation on the phone. Easy to see what happens
Arrow Holder
This kind of arrow holder which is going to let the arrow siting on the right position.
Handle
The rubber made handle will provide the most comfortable touch and holding feeling.
Detector
The arm detector will sense whether anything is on the way of string. To protect user to avoid hurt from string coming back to position。
When the position is correct, the light will show it's ready.
Bow Tips

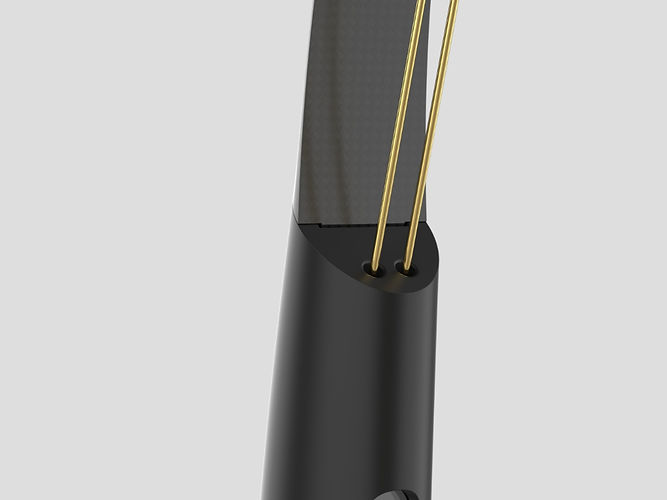

With two strings to hold the blade, make it more stable.
String Tighter
String goes up to the top of the blade, and it will came back to the main body.
People never need to stringing the bow by themselves. This bow will automatically do.
USE FLOW
1.Assembling two blades with main part
2.Waiting for strings tight automatically
3.Loading an arrow and pull the string
4.Using the frame to aim
PRODUCT COMPARISON
Recurve Bow
Advantages:
1. Easy to buy accessories
2. Very stantard
3. It can be use on common compitaion
Disadvantages:
1. Hard to learn and practice
2. Hard to combine and tight
3. Fixed pulling force
VANBOW
Advantages:
1. Easy to use and shoot accurate
2. Use camera to see target
3. A very good social advance
4. Automatically tight the string
5. Changeable pulling force
COLOR WAY
